Subcine specializes in underwater film equipment rentals and provides experienced operators. We offer state-of-the-art gear designed for underwater cinematography, alongside skilled professionals who ensure precision and creativity in every project.

Whether for film, TV, or commercials, Subcine is your reliable partner for bringing underwater visions to life with expertise and professionalism.

EQUIPMENT

CONTACT

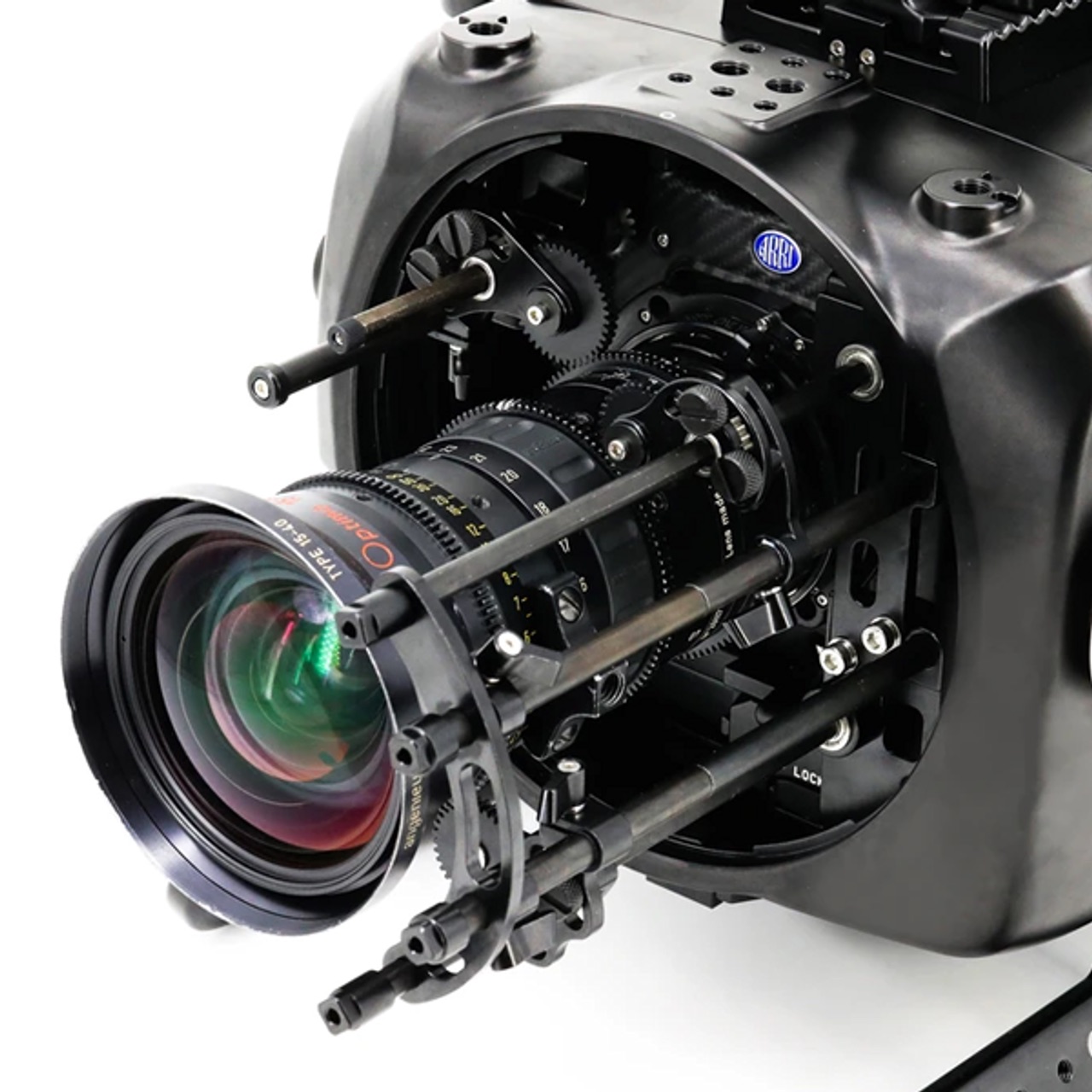

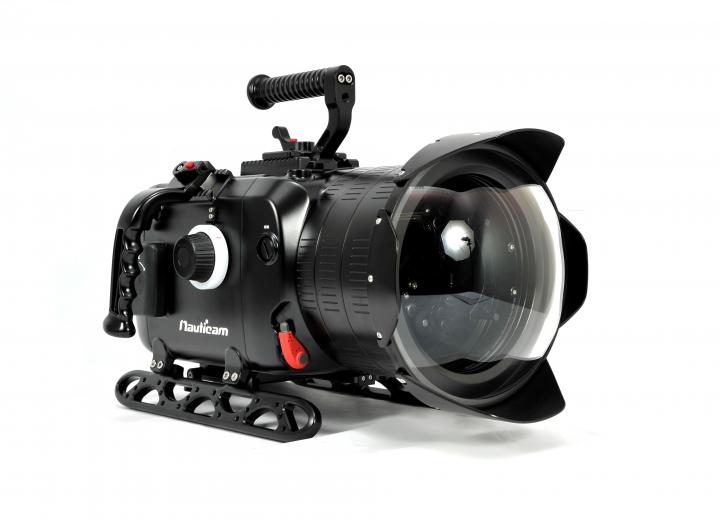

Nauticam Underwater Kit for ARRI ALEXA Mini / Mini LF
Professional Digital Cinema System with Dome Port, Monitoring, Control & 40 m Surface Cable
• Compatible with ARRI Alexa Mini & Mini LF
• Maximum diving depth: 80 m
• Monitor including underwater monitor housing included
• 40 m umbilical cable for camera control & live monitoring from the surface
• Integrated ARRI GPB-1 control unit – 10 freely assignable buttons
• Supports focus, iris & zoom control via ARRI cforce mini / plus motors
• Optically coated 250 mm glass dome (N200 system) – ideal for cinema lenses
• Flexible port configurations with included 30/40/50 mm extension rings
• Compatible with V-Mount or Gold Mount batteries (mounting plate included)
• Camera rig can be fully assembled outside of the housing – fast & safe setup
• Adjustable weight distribution (sideways and front/back) via variable weight mounts
• Integrated vacuum system with valve and hand pump for leak-proofing check
• Ideal for professional productions – from film sets to nature documentaries
Technical Specifications:
• Dimensions: 385 × 363 × 290 mm
• Weight: 14.3 kg (on land)
• Port system: N200
Scope of Delivery:
• Nauticam underwater housing for Alexa Mini / Mini LF with ARRI GPB-1 unit
• 250 mm dome port (N200) incl. 30 / 40 / 50 mm extension rings
• Monitor including Nauticam monitor housing
• 40 m umbilical cable for camera & image control from the surface
• Integrated vacuum system incl. M16 valve and hand pump
• 3x focus/zoom/iris gears with drive shafts
• 3x cforce mini & 2x cforce plus motor brackets
• V-Mount battery plate with LEMO connector
• Left, right & top handle
• Skids with trim weight holders
• Trim weights
• O-ring kit & tool set
• 3× Pelican 1620 transport cases

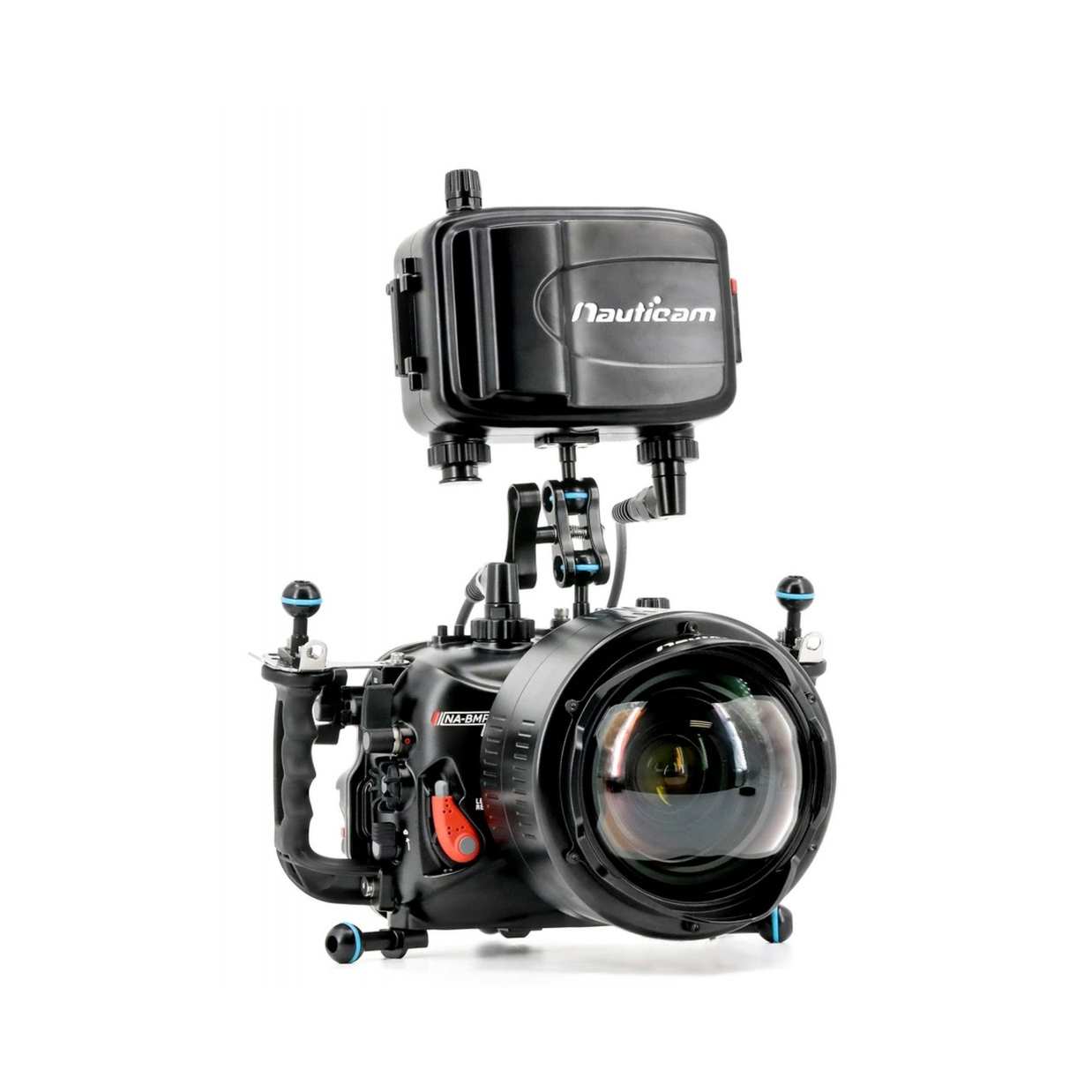

Nauticam Underwater Kit for Blackmagic Pocket Cinema Camera 6K

    Complete System with Camera, Lens, Port, Monitor, Batteries & 40 m Video Transmission Cable
• Camera: Blackmagic Pocket Cinema Camera 6K with EF mount

    • Lens: Canon EF 16–35 mm f/2.8

    • Port system: N120 – includes matching dome port with zoom function for 16–35 mm

    • Monitor: SmallHD 501 with Nauticam NA-502B monitor housing (HDMI 1.4)

    • Video transmission: 40 m surface cable for live video feed to the set

    • Maximum diving depth: 100 m

    • Large, ergonomic side control wheels for zoom & focus

    • Intuitive grip controls for ISO, shutter, focus, white balance & playback

    • HDMI ports (M16 & M28) for external monitors

    • Direct recording to Samsung T5 SSD via USB-C (integrated bay)

    • Powered by external 4×18650 battery pack – incl. batteries, up to 2.5 h runtime underwater

    • Rugged handles with stainless steel reinforcement & accessory mounts (e.g. for lights, arms, etc.)

    • Weight on land: 3.9 kg | In water: approx. –0.5 kg | Dimensions: 378 × 215 × 160 mm
Scope of Delivery:

    • Blackmagic Pocket Cinema Camera 6K

    • Canon EF 16–35 mm f/2.8 lens

    • Nauticam NA-BMPCC6K underwater housing

    • Matching N120 dome port incl. zoom gear

    • SmallHD 501 monitor with Nauticam monitor housing (NA-502B)

    • HDMI 1.4 connection & bulkheads

    • 40 m surface cable for video transmission

    • External battery pack incl. 4×18650 lithium batteries

    • Vacuum valve (M16), spare O-rings, tool kit, padded transport bag

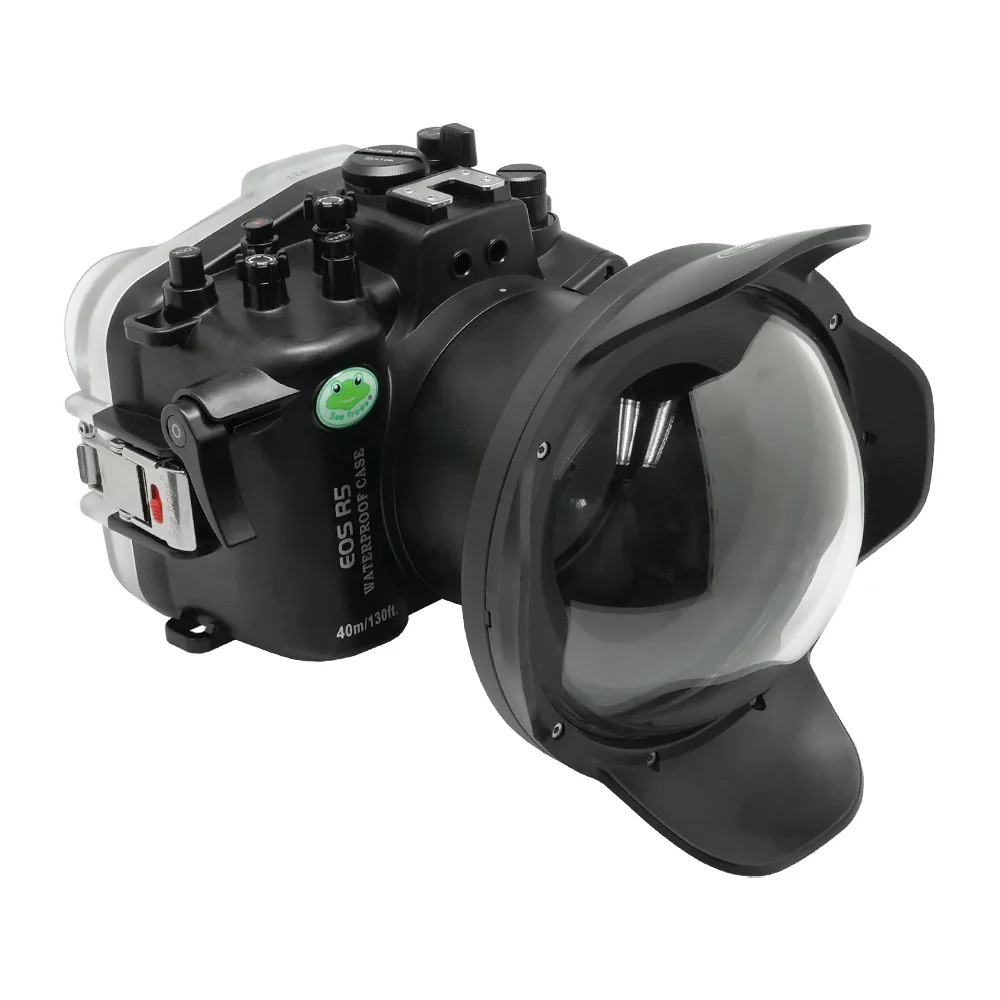

Seafrogs Underwater Kit for Canon EOS R5

    Compact hybrid system for photography & video with vacuum monitoring and dome port
• Compatible with Canon EOS R5

    • Maximum diving depth: 40 m

    • Vacuum system with optical LED indicator and hand pump for leak detection

    • Compatible with Canon RF–EF adapter – ideal for using EF lenses

    • Large dome port suitable for Canon EF 16–35 mm f/2.8 (incl. zoom gear)

    • Mechanical control of all main functions – including focus & zoom underwater

    • Strobe connection via optical cables (e.g., for Inon / Sea&Sea)
Technical Specifications:

    • Dimensions: approx. 250 × 185 × 135 mm

    • Weight: approx. 2.4 kg (on land, without camera)

    • Tested diving depth: 40 m

    • Port system: Seafrogs bayonet mount for EF lenses
Included in delivery:

    • Seafrogs underwater housing for Canon R5 (black or white)

    • Vacuum system with optical LED leak indicator and hand pump

    • Dome port for Canon EF 16–35 mm f/2.8 incl. zoom gear

    • Spare O-ring, O-ring grease & removal tool

Scubacam SCU-50 Splashbag
• Waterproof soft housing for film & broadcast cameras – ideal for spray, rain & surface-level water work

    • Compatible with Alexa Mini, RED, Sony FX6/9, Canon C-Series, and more

    • Durable TPU material, clear acrylic front lens

    • Various lens tubes available – also for zoom setups

    • Integrated hand sleeves for manual focus & zoom control

    • Quick access via waterproof zipper

    • Room for top handle & on-camera monitors

    • Compatible with matte box & 15 mm rod support

    • Surface use only – not a dive housing
Dimensions / Weight:

    Size depends on configuration, waterproof to approx. 0.5 m depth
Included:

    • SCU-50 Splashbag

    • Handle

    • Monitor case with power and signal cable from housing

    • Hard case

    • Optional: 40 m umbilical cable for video transmission and camera control

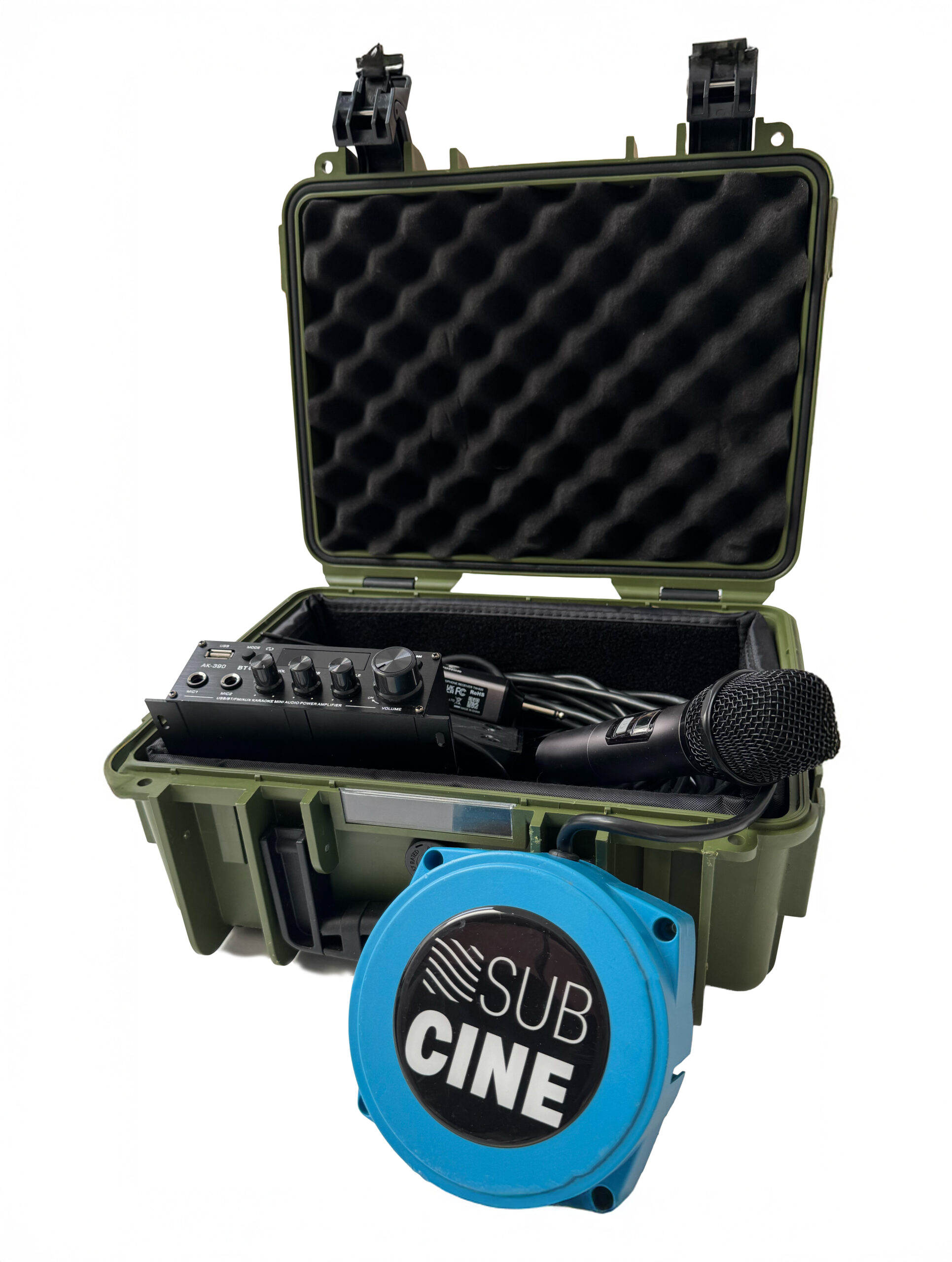

Mobile Underwater Sound System with AQUA30 Speaker

    Professional audio system for underwater applications in film, training, or therapy.
Included:

    • AQUA30 underwater speaker (IP68, 30 W, 5 m cable, resistant to chlorinated & salt water)

    • Wireless microphone (transmitter/receiver for voice transmission)

    • 12 V audio amplifier (compact, for 8 ohm systems)

    • V-Mount power supply incl. battery & mounting bracket

    • 40 dB+ perceived sound pressure underwater
Scope of delivery:

    • 1× AQUA30 underwater speaker (pool blue, 5 m cable)

    • 1× wireless microphone with transmitter & receiver

    • 1× 12 V audio amplifier

    • 1× V-Mount battery with bracket and voltage regulator

    • 1× connection & adapter set (XLR / jack depending on system)

    • 1× transport bag or flight case (optional)

    • Pre-configured and ready to use

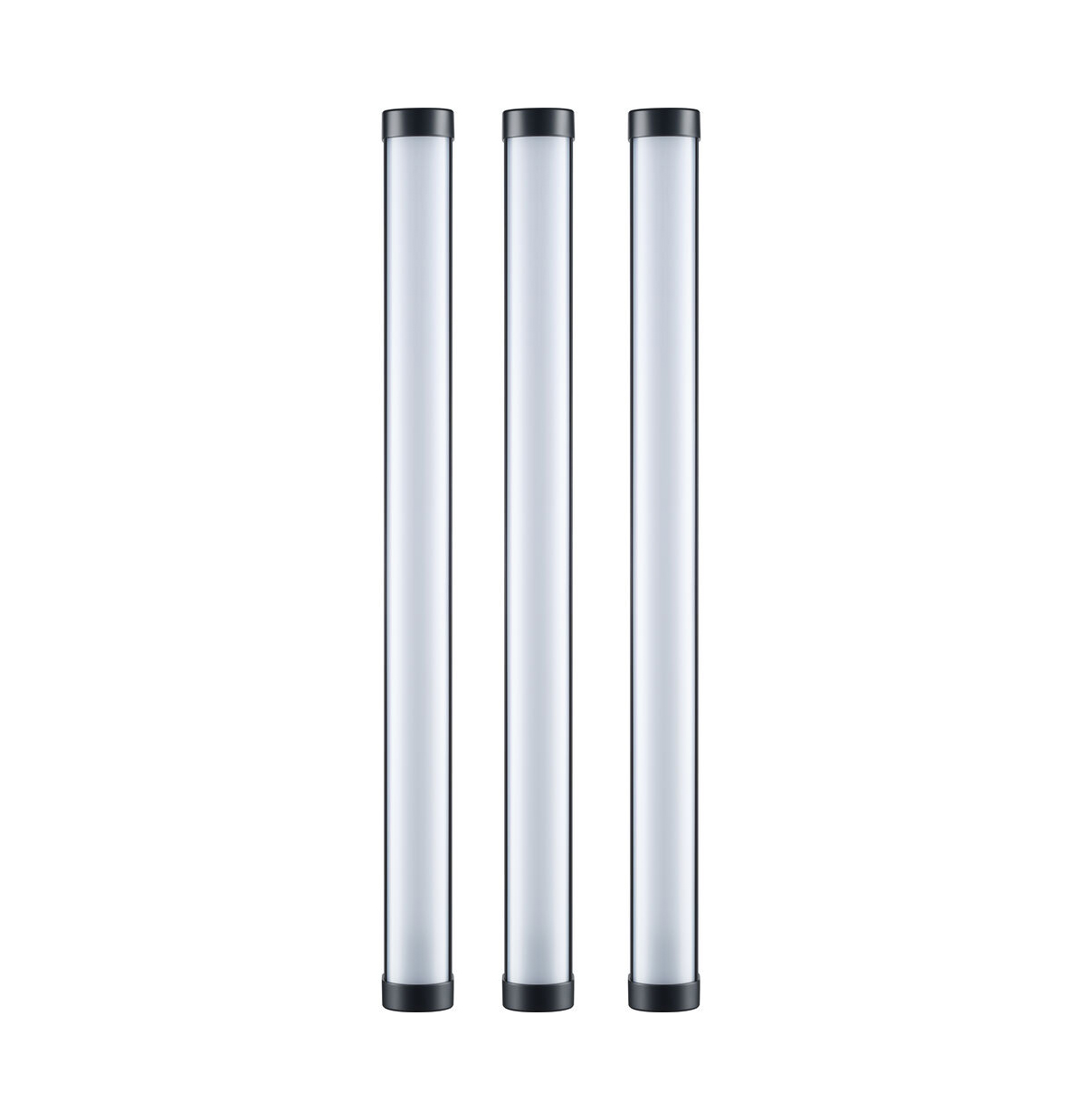

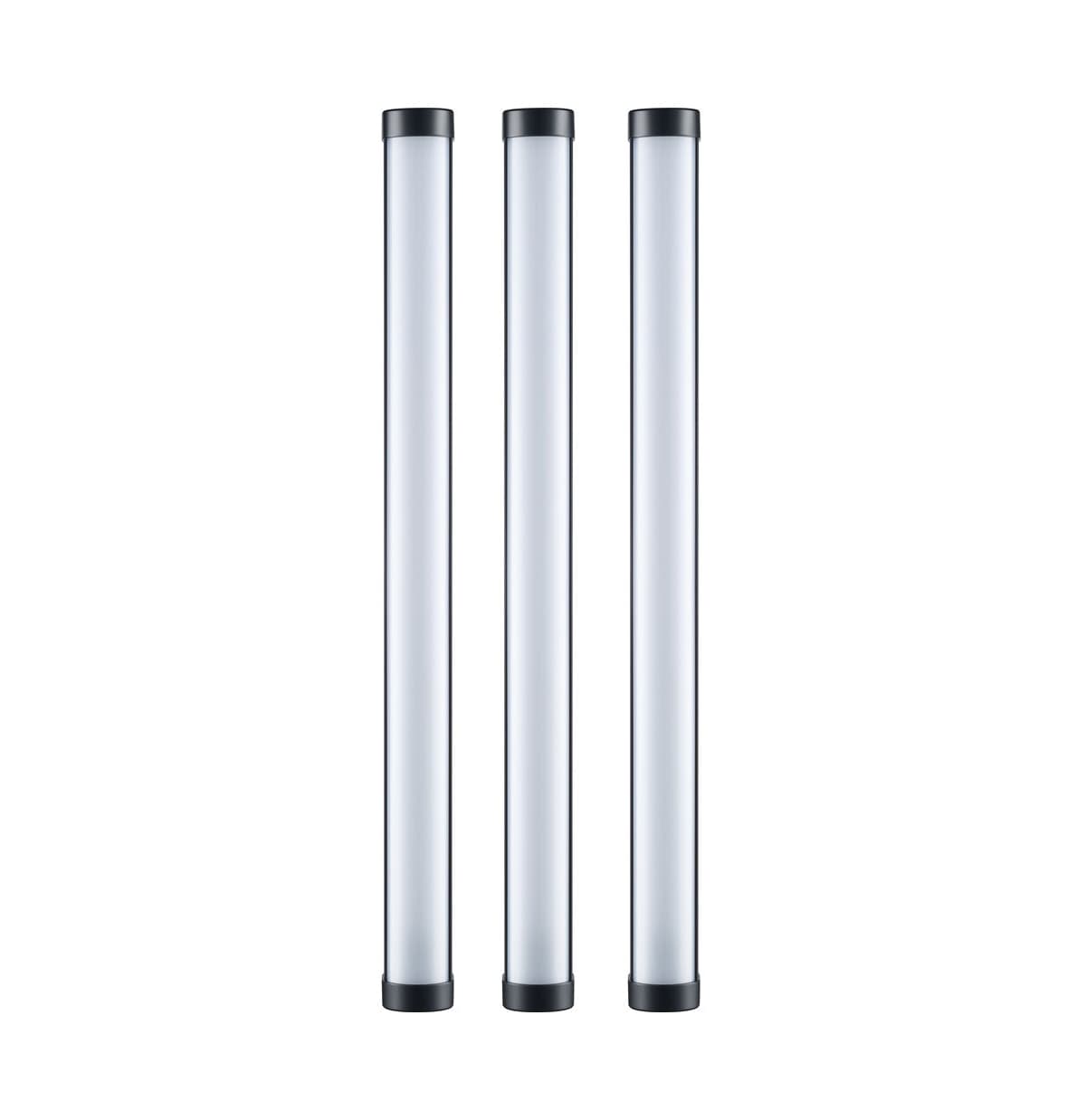

Godox WT60R Underwater LED System

    RGB Video Light for Underwater Scenes & Effects
• Powerful continuous LED light with wide-angle 120° beam

    • Maximum depth: 40 m – IP68 certified

    • Full RGB color control incl. presets and custom gels

    • Adjustable color temperature: 2800 K – 6500 K

    • Built-in effects: fire, TV flicker, lightning, police light, and more

    • Output: up to 2800 lux @ 1 m

    • Control via on-unit interface or Godox App (Bluetooth)

    • Built-in battery with USB-C charging – up to 2 h runtime at full power

    • Compact, rugged aluminum housing with secure twist-lock system

    • Ideal for color washes, underwater mood lighting, and visual effects
Included:

    • 1× Godox WT60R RGB Underwater Light

    • Mounting bracket

    • USB-C charging cable

    • Transport bag
